OLYMPUS

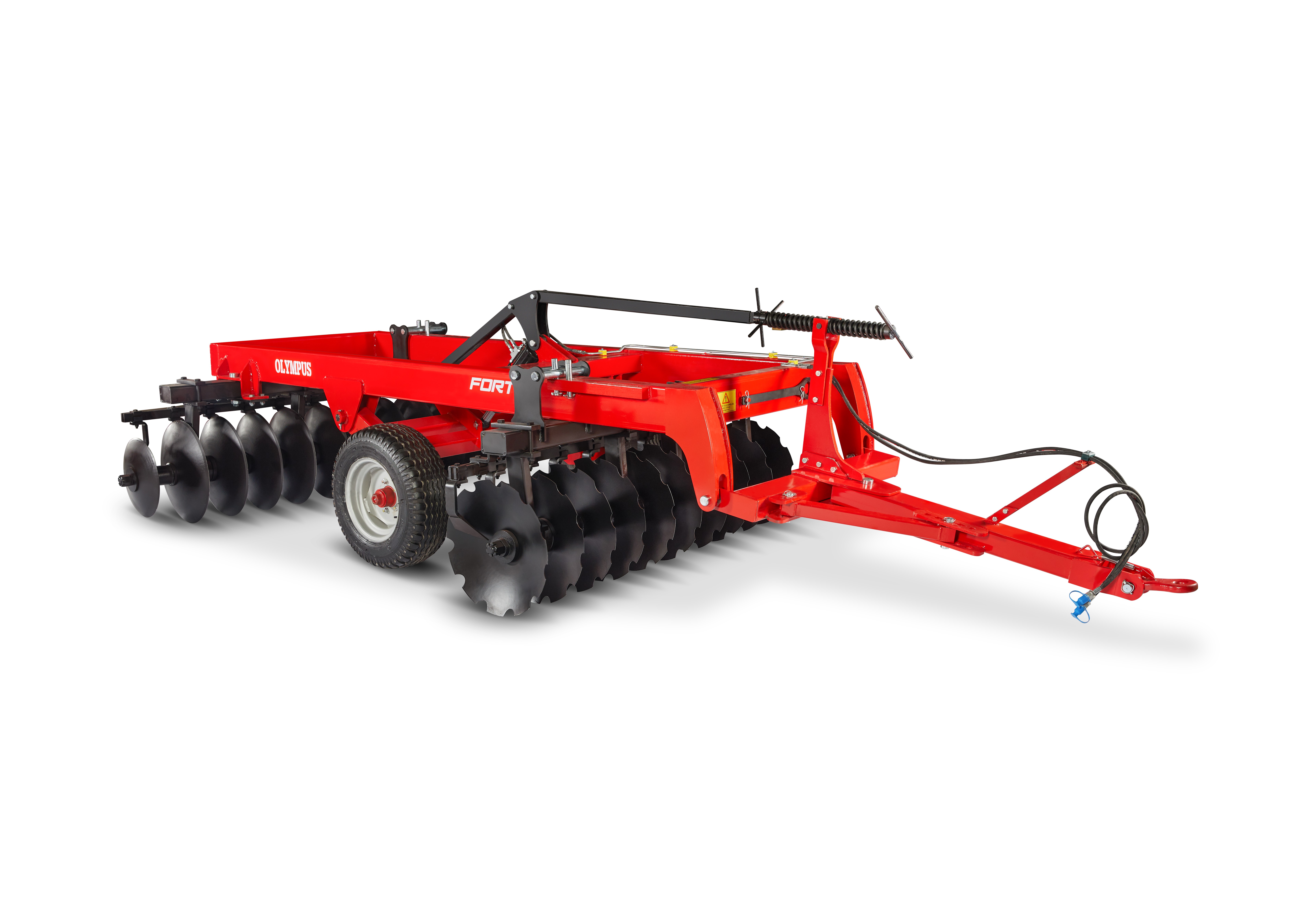

Cultivation-Heavy type trailed disc harrow it is a machine designed to perform many different tasks.
-It is used in both high residue primary tillage and secondary tillage.
-Its heavy and durable structure is suitable for use in difficult conditions and deep driving.
-With different model options, it provides the farmer with the opportunity to choose the right solution according to their needs.
-It has a simple design that provides ease of use with a reinforced chassis suitable for use in difficult conditions.
-It achieves maximum efficiency by spending minimum time with 8-12 km/h operating speed.
-Direction angles affecting the working depth, tilting and shredding properties of the discs can be easily adjusted with the multi-hole mechanism on the chassis. -Direction angle adjustment can be optionally provided with mechanical or hydraulic control.
-It gives confidence thanks to its welded disc feet that are resistant to hard conditions and impacts in the most robust way.
-The spring tension arm connected between the axle and the arrow ensures the parallelism of the front and rear battery.
-Parallelism can be adjusted with the help of hydraulic piston.
-At the same time, this spring suspension minimizes bed and disc breakage by creating a flexible structure that adapts to the unevenness of the field surface and road conditions during operation.
-The scrapers, which are our special production and included in each disc, prevent residues by scraping the discs during tillage.
-The distance of the scrapers to the discs can be adjusted as desired or as they wear out.
-The chassis height is 65 cm, the disc spacing is 23 cm, and the space between the front and rear discs is wide.
-The wide working area of the discs ensures the most efficient transfer of soil from front to back and working with minimum residue accumulation.
-Maximum working depth is reached thanks to the disc direction angle that can go up to 25 degrees and its heavy chassis.
-56, 61 cm diameter notched and flat disc options are available.
-It can be produced from 20 discs to 36 discs without folding, from 40 discs to 64 discs with folding.
Are you interested in this product?
Get in contacat with us to learn more about this product.
- There may be changes in product technical specifications in line with customer needs.
- Product technical specifications and standard accessories may vary, product images are for general promotional purposes.
- The indicated required horsepowers may differ up to ± 20% depending on the soil structure and the technical characteristics of the tractors (double wheel drive, etc.).
- Weights stated may differ by up to ± 15% depending on optional parts.
